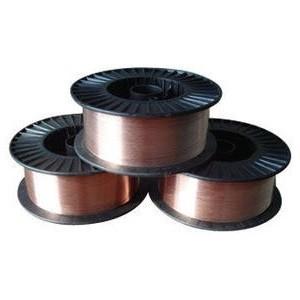

ER55-G 600MPa 15kg Mig Welding Wire For 316 Stainless Steel 1.6mm 0.063"

Name: ER55G 600MPa 15kg Mig Welding Wire For 316 Stainless Steel 16mm 0063quot
Brand: LONGTENG
Price: 1 USD

China ER55-G 600MPa 15kg Mig Welding Wire For 316 Stainless Steel 1.6mm 0.063" wholesale

Brand Name : LONGTENG

Model Number : LT·TH550-NQ-II

Certification : TUV CE, ABS, DB, ISO9001

Place of Origin : CHINA

MOQ : one pallet

Price : USD 1

Supply Ability : 1,200,000 TON PER YEAR

Delivery Time : 15 WORKING DAYS

Packaging Details : Neutral box/ LT color box/OEM brand box

Product name : Weathering Steel Solid Welding Wire ER55-G

Model : ER55-G

Brand : LONGTENG

Diameter : 0.8/0.9/1.0/1.2/1.6mm

Weight : 1/5/15/20kg

Surface : Cooper plating

Spool material : Black plastic spool

Packing : Color box

OEM : Accept

Diameter of spool : 100/200/270/300mm

Contact Now

ER55-G 0.8/1.0/1.2/1.6mm Weathering Steel Solid Welding Wire

ER55-G is copper coated gas shielded welding wire for low alloy high strength steel with strength grade of 550-600 MPa. Due to the enough quantity of element Mn,Si,Cu,Cr,Ni etc in this welding wire, the weld has good atmospheric corrosion resistance.

Conform to Standard :TB/T 2374 ER55-G

GB ER55-1

Specification:It comes with Argon - rich gases protection. The deposited metal has good atmospheric corrosion resistance, crack resistance, good shaping and toughness.

Purpose:Suitable for welding 550MPa high strength weathering steel,such as construction machinery, bridges, etc.

Chemical Composition(%)

Chemical Composition	C	Mn	Si	S	P	Ni	Cr	Cu
Guarantee Value	≤0.10	1.20~	≤0.60	≤0.020	≤0.025	0.20~	0.30~	0.20~
Guarantee Value	≤0.10	1.6	≤0.60	≤0.020	≤0.025	0.6	0.9	0.5
General Result	0.057	1.4	0.46	0.008	0.016	0.33	0.48	0.3

Mechanical Properties of Deposited Metal(Ar+20%CO2)

Test Item	R_m(MPa)	R_eL/R_p0.2(MPa)	A(%)	KV₂(J)
Test Item	R_m(MPa)	R_eL/R_p0.2(MPa)	A(%)	-40℃
Guarantee Value	≥550	≥450	≥22	≥60
General Result	590	495	28	112/120/118

Reference Current(DC⁺)

Size(mm)	Current range (A)	GAS flow rate(L/min)
Φ0.8	50~100	15
Φ1.0	50~220	15~20
Φ1.2	80~350	15~25
Φ1.6	170~550	20~25
